A Lincoln Cent Problem May Have Ended on the 2026-P Dime
A 1909 letter to Victor David Brenner from Charles E. Barber still matters.
At that time, Barber served as Chief Engraver of the United States Mint. Brenner, meanwhile, had submitted the design that became the Lincoln cent. Barber liked parts of the work. However, he saw a technical problem.
The Mint could not strike Brenner’s model as submitted. The field needed a “fixed radius or curve.” Barber also noted that the field in front of Lincoln’s face sat on one plane, while the field behind the head sat on another. In Barber’s words, that “will never do” [1].
That was not a small objection. It defined how the Mint had to think about coin design for more than a century.
Now, a scan of a 2026-P dime suggests that the old rule may no longer control the Mint’s art.
Modern CNC milling, digital sculpting, and advanced die design may allow the Mint to create a coin die face with more than one plane. In other words, Brenner’s rejected idea may now fit modern production.
Why Barber Needed One Smooth Curve
The early 20th-century Mint had to design coins for machines.
That fact shaped every model. The Mint needed dies that could strike coins cleanly, quickly, and repeatedly. It also needed fields that workers could finish with mechanical methods.
Therefore, Barber insisted on one smooth radius. The design field had to follow one curve. The Mint could not easily manage separate field planes on the same coin face.
This requirement limited artistic freedom. Yet it also protected production. A coin with uneven planes could create problems with die finishing, metal flow, striking pressure, and die life.
So Barber gave Brenner clear instructions. The model needed one field plane and one fixed curve.
The Janvier Lathe Changed the First Rule
For many years, a master hub impressed the coin design into a master die. Radius plates and basining then helped give working dies their curved faces.
That older system gave the Mint control. However, it also imposed limits.
Then the Mint acquired the Janvier reducing lathe. Beginning in 1907, outside sculptors submitted new models for U.S. coins. Those models already carried much of the desired curvature. As a result, radius plates and basining gradually lost their earlier role [2].
Still, the Mint did not gain total freedom.
The staff often had to modify a design during the reduction stage. Relief, curvature, and strikeability still mattered. The Mint had to make art coinable.
[IMAGE 2: Janvier reducing lathe, sculpted model, or die-making equipment]
Digital Sculpting Changed the Next Rule
The next major change came in the digital era.
Joseph F. Menna joined the United States Mint in 2005 as a medallic sculptor. He later became Chief Engraver. Under his influence and the Mint’s broader digital transition, digital sculpting gained a central role in the tooling process.
By 2006, the Mint had moved away from plaster models for much of its tooling work. Digital models could now guide the process with far greater precision. This shift also raised an important research question: did the digital workflow make the traditional master hub unnecessary in some cases?
That question sits at the center of the “missing master hub” discussion [3].
The Mint’s public die-making process still describes master hubs for most coins. However, the larger point remains. Digital geometry now drives modern die design in ways Barber could not imagine.
Die Curvature Does Real Work
Die curvature does more than shape the look of a coin.
It helps the coin strike.
A higher-relief design usually needs deeper curvature. That deeper curve helps metal flow into the design. It can also reduce wear during circulation. In addition, it can lower striking pressure and extend die life.
That is why curvature matters to both artists and engineers.
Today, CNC programming can control die curvature in ways older tools could not. The Mint has also studied how die curvature interacts with planchet upset, striking pressure, and coin edge fill.
In its 2018 Biennial Report to Congress, the Mint discussed a “matched system” that aligned planchet upset and die curvatures. The goal was clear. The Mint wanted lower coining pressure near the edge and more uniform pressure across the coin [4].
That experiment helps explain why modern die curvature deserves close attention.
The Mint Also Tested Exponential Curves
The Mint did not stop with spherical curvature.
Its 2022 Biennial Report discussed penny trials that changed die curvature from spherical to exponential. Those trials also modified planchet upset geometry. The Mint wanted acceptable design fill at lower stamping tonnage.
The same report also discussed nickel trials. In those tests, the Mint changed die curvature from spherical to exponential to better match planchet upset geometry.
The report then described another important step. The Mint’s Design/Engraving Department mapped and characterized nickel fatigue-failure locations in three dimensions. Then it made subtle die design changes [5].
That language matters.
It shows that the Mint can now study die failure at a highly detailed level. It can also make fine design adjustments in response.
Therefore, modern die design is no longer just sculpture reduced into steel. It is sculpture, engineering, software, and production science working together.
What the 2026-P Dime Scan Shows

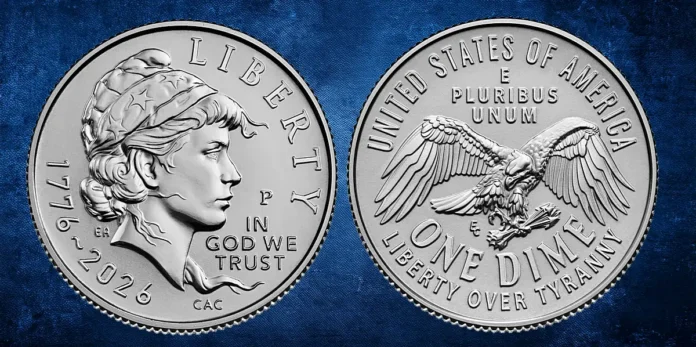

That brings us to the 2026-P dime.
I submitted an example to Shawn Tew of the Rabbit Hole Research Group. The coin underwent scanning at the University of Michigan. The scan used White-Light Interferometry and a 3D optical profilometer.
One generated image showed a cross-section profile. That profile appeared to show planes at two levels.
Next, I overlaid images on the cross-section graph. This helped estimate the approximate curvature of each plane.
The field behind Liberty’s head appeared to follow an approximate spherical curve with a five-inch radius. However, the field in front of Liberty’s face appeared to follow an approximate exponential curve [6].
That result changes the discussion.
Collectors often assume that coin dies follow a spherical curve. Sometimes they also discuss exponential curvature. Yet this dime appears to show something more complex.
It may show a die face that uses more than one plane and more than one curvature type.
Barber’s Old Problem Returns in a New Form
This is the fascinating part.
The 2026-P dime appears to echo Barber’s 1909 objection to Brenner’s Lincoln model. Barber objected to a field in front of the face on one plane and a field behind the head on another.
In 1909, that created a production problem.
In 2026, it may show a production advance.
The difference comes from technology. Barber needed one mechanically finished curve. Modern CNC-driven tooling may allow the Mint to tailor different areas of the die face to different design needs.
That could give artists more room. It could also help engineers control strike, metal flow, relief, and die life.
In short, a restriction that once blocked Brenner may now inspire future designs.
A Small Dime With a Big Message
The 2026-P dime does not prove that every modern U.S. coin uses multi-plane die geometry.
It also does not prove that the Mint intentionally designed this coin to make a historical statement.
However, the scan supports a reasonable inference. The Mint now appears capable of die geometry that Barber could not accept in 1909.
That possibility should excite collectors.
It suggests that the 21st-century Mint may have more artistic freedom than any earlier Mint generation, and how it can shape relief with greater care. It can adjust curvature with greater precision and can also use digital tools to support both beauty and coinability.
Future research may refine this conclusion. Future Mint reports may also prove parts of this inference wrong.
Still, the evidence deserves attention.
A 2026-P dime may seem like a small circulating coin. Yet under advanced scanning, it may reveal something much larger: the quiet end of a century-old design constraint.
Brenner would have understood that moment.
And he might have smiled.
Sources and Citations
- [1] U.S. Mint, NARA-CP, Entry 1A 3281. Letter dated February 13, 1909, from Charles E. Barber to Victor David Brenner. Quoted in Roger W.
- [2] Pete Apple, “A Review of Die Curvature at the U.S. Mint.”
- [3] Paul Gilkes, “From Presidential Appointee to Mint Director’s Choice,” Coin World, April 6, 2026, page 33ff.
- [4] Pete Apple, “The Case of the Missing Master Hub,” CoinWeek, March 27, 2026.
- [5] United States Mint, 2018 Biennial Report to the Congress as Required by the Coin Modernization, Oversight, and Continuity Act of 2010, April 2019, page 7.
- [6] United States Mint, 2022 Biennial Report to the Congress as Required by the Coin Modernization, Oversight, and Continuity Act of 2010, 2022, page 13.
